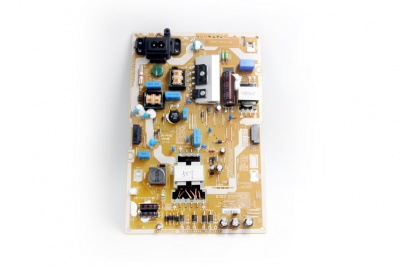

电视机电源55 inch

技术参数/Technical Data

额定输入电压/Rated input voltage:100-240Vac

输入电压范围/Input voltage range:90-264vac

额定工作频率/Rated operating frequency:50/60Hz

工作频率范围/Operating frequency range:47-63Hz

输入电流/Input current: 2500mA

输出电压电流/Output voltage :   12.8Vdc ;   108Vdc&126Vdc        　　

输出电流范围/Output current :   12.8V/3.98A;  108V/500mA(2D),126V/1000mA(3D)

输出功率/Output power: 100W Max.

环境要求/Environmental Specification

工作温度/Operation tenp:0℃～40℃

认证标准

中国/China                      GB4706

欧州/Europe                    EN60335
