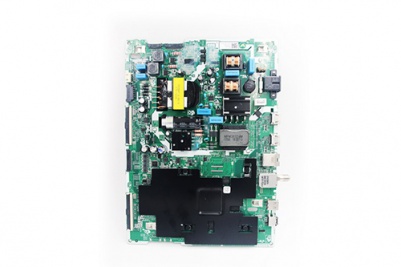

  VN43UH 110W 3in1 tv-board

•

•

VN43UH 110W 3in1 tv-board

技术参数/Technical Data
额定输入电压/Rated input voltage:100-240Vac
输入电压范围/Input voltage range:90-264vac
额定工作频率/Rated operating frequency:50/60Hz
工作频率范围/Operating frequency range:47-63Hz
输入电流/Input current: 3000mA Max.

能效等级/Energy efficiency level:VI
输出电压/Output voltage:   13Vdc,  174V led drv
输出电流范围/Output current range:   3500mA,  370mA   Max.
输出功率/Output power:  110W Max.

环境要求/Environmental Specification
工作温度/Operation tenp:  -10℃～40℃
